VESDA VEU Range. Variants off a four pipe system with a coverage of uptown 4000m2
4 Pipes
4000m2 of coverage
Class A, B and C detection

Price: £2566.35

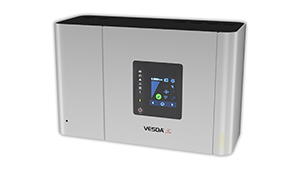

Vesda VEU with 3.5" Display
Part number: VEU-A10
The VEU series of aspirating smoke detectors are the premium detector of the VESDA-E range. An Ultra-wide sensitivity range; 15 times greater than VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by at least 40%. Considerably longer linear pipe runs and extended branched pipe network configurations cater perfectly to applications with higher ceilings providing an increased coverage by up to 80% whilst allowing convenient detector mounting for ease of service and maintenance. A range of revolutionary new features provide unsurpassed detection performance, flexibility, field programmability, connectivity and reduced total cost of ownership.




Price: £2300.4

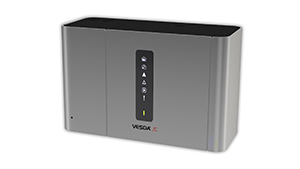

Vesda VEU with LED's
Part number: VEU-A00
The VEU series of aspirating smoke detectors are the premium detector of the VESDA-E range. An Ultra-wide sensitivity range; 15 times greater than VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by at least 40%. Considerably longer linear pipe runs and extended branched pipe network configurations cater perfectly to applications with higher ceilings providing an increased coverage by up to 80% whilst allowing convenient detector mounting for ease of service and maintenance. A range of revolutionary new features provide unsurpassed detection performance, flexibility, field programmability, connectivity and reduced total cost of ownership.




Price: £206.55

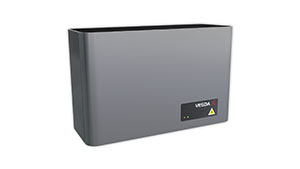

Vesda-E STX PSU 0.5A 14AH
Part number: VPS-220-STX-SLV
Vesda-E Power Supply Units are uniquely designed to complement the style and appearance of VESDA-E aspirating smoke detectors (ASD) and are technically matched to provide sufficient current and battery charging capacity to meet the requirement of EN 54-4.

The STX variants are VdS approved and CE marked to EN54-4 so are particularly suitable for use in territories where these approvals are required. They may also be suitable in territories where ISO 7240-4 is required.


Price: £290.25
Vesda-E STX PSU 2A 24AH
Part number: VPS-250-STX-SLV
Vesda-E Power Supply Units are uniquely designed to complement the style and appearance of VESDA-E aspirating smoke detectors (ASD) and are technically matched to provide sufficient current and battery charging capacity to meet the requirement of EN 54-4.

The STX variants are VdS approved and CE marked to EN54-4 so are particularly suitable for use in territories where these approvals are required. They may also be suitable in territories where ISO 7240-4 is required.

Price: £270
Vesda Analytics Dust Trace Licence
Part number: VSW-801
DustTrace Software Analytics

DustTrace is an optional software analytics that can be licensed for the VESDA-E series of aspirating smoke detectors. It provides targeted detection of dust which is present in the sampled air.

Realtime monitoring is possible with Xtralis VSM4, the PC-based solution
for integrated control and monitoring of Xtralis very early warning smoke detection systems, and iVESDA, a mobile application for iOS® and AndroidTM platforms. Notification of analytics events is provided via Xtralis VSM4, iVESDA, Xtralis VSC or a VESDA-E Analytics Relay Module VRT-X00




Price: £270
Vesda Analytics Diesel Trace Licence
Part number: VSW-802
DieselTrace is an optional software analytics that can be licensed for the VESDA-E series of aspirating smoke detectors. It provides targeted detection of diesel engine exhaust particles in abnormal scenarios, such as when a diesel engine is not fitted with particle filters, or the particle filter fitted to a diesel engine malfunctions.

Realtime monitoring is possible with Xtralis VSM4, the PC-based solution
for integrated control and monitoring of Xtralis very early warning smoke detection systems, and iVESDA, a mobile application for iOS® and AndroidTM platforms. Notification of analytics events is provided via Xtralis VSM4, iVESDA, Xtralis VSC or a VESDA-E Analytics Relay Module VRT-X00*.




Price: £270
Vesda Analytics Wire Trace Licence
Part number: VSW-803
WireTrace Software Analytics

WireTrace is an optional software analytics that can be licensed for the VESDA-E series of aspirating smoke detectors. It provides targeted detection of particles released from slowly overheating PVC insulated wires. Detection of such particles will direct threat investigation to the primary source (i.e. electrical wires and/or cables), resulting in a faster response for ultimate asset protection and ensuring business continuity.

Realtime monitoring is possible with Xtralis VSM4, the PC-based solution
for integrated control and monitoring of Xtralis very early warning smoke detection systems, and iVESDA, a mobile application for iOS® and AndroidTM platforms. Notification of analytics events is provided via Xtralis VSM4, iVESDA, Xtralis VSC or a VESDA-E Analytics Relay Module VRT-X00*.
