OSID (Open-area Smoke Imaging Detector) combines dual wavelength (IR and UV) beams with CMOS imaging detection. This technology features high tolerance to vibration and structural movement and OSID differentiates better between smoke and environmental conditions than traditional beam detectors. OSID operates in both pitch dark as well as bright sunlight. One Imager (receiver) can have up to 7 Emitters and provides easy 3D coverage for atria etc. Fast and easy installation and commissioning is achieved through the flexible ball & socket arrangement and the use of the laser alignment tool. Trouble shooting is simple thanks to the on-board memory and the OSID Diagnostic SW package, both unique for this industry.

Please call or Enquire Here for pricing
OSID 10
Part number: OSI-10
OSID (Open-area Smoke Imaging Detector) combines dual wavelength (IR and UV) beams with CMOS imaging detection. This technology features high tolerance to vibration and structural movement and OSID differentiates better between smoke and environmental conditions than traditional beam detectors. OSID operates in both pitch dark as well as bright sunlight.

OSID-10 Imager 8° FOV

Distance 30-150 m with OSE-SP/W.
This configuration is for a 1 on 1 system.
The OSI-10 is not suited to work with High Powered Emitters.





Please call or Enquire Here for pricing
Please call or Enquire Here for pricing
OSID 90
Part number: OSI-90
OSID (Open-area Smoke Imaging Detector) combines dual wavelength (IR and UV) beams with CMOS imaging detection. This technology features high tolerance to vibration and structural movement and OSID differentiates better between smoke and environmental conditions than traditional beam detectors. OSID operates in both pitch dark as well as bright sunlight.

OSI-90 Imager 80° FOV

Distance 6-34 m with OSE-SP/W
Distance 12-68 m with OSE-HPW
Distance 12-50 m with OSE-HP-01
The OSI-90 can operate with up to 7 Emitters.




Please call or Enquire Here for pricing
Please call or Enquire Here for pricing
OSID Emitter H/P
Part number: OSE-HPW
OSE-HPW Emitter High Power Wired 24 Vdc

Allows to double the detection ranges of the OSI-45 and OSI- 90.




Please call or Enquire Here for pricing
Please call or Enquire Here for pricing
OSID Emitter S/P
Part number: OSE-SP
OSE-SP Emitter battery powered-alkaline battery
Using battery powered Emitters, with a guaranteed 5 year life, drastically reduce the wiring and installation costs.




Please call or Enquire Here for pricing
Please call or Enquire Here for pricing

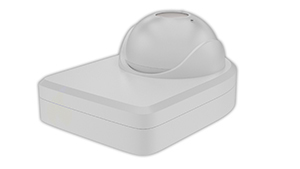

OSID Emitter S/P W/R
Part number: OSE-SPW
OSE-SPW Emitter Wired 24 Vdc
A preferred solution when 24 Vdc is close by.




Please call or Enquire Here for pricing
Please call or Enquire Here for pricing

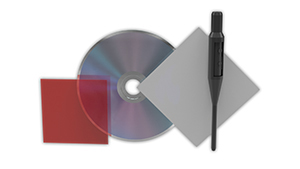

OSID Installation Kit
Part number: INST
OSID Installation Kit
Kit including laser alignment tool, test filter, PC cable, cleaning cloth, reflectors and manual.
